iOS — APNs setup

Open Notification talks to Apple directly over HTTP/2 with a token-based (.p8) authentication key. One key serves every app on your team and both the sandbox and production environments — there is nothing to renew every year.

Part A — Create the key in the Apple Developer portal

1 Sign in at developer.apple.com/account with an account that has the Admin or Account Holder role (App Managers cannot create keys).

2 Open Certificates, Identifiers & Profiles → Keys in the left sidebar.

3 Click the + button next to the Keys heading.

4 Give the key a name you will recognise later (e.g. Open Notification APNs) and tick Apple Push Notifications service (APNs).

Sandbox & Production

Since 2024 the APNs checkbox has a Configure button offering Sandbox & Production or Sandbox only. Choose Sandbox & Production.

5 Click Continue, review, then Register.

6 Click Download. You get AuthKey_XXXXXXXXXX.p8. Apple lets you download it exactly once. Store it somewhere safe (a password manager's file attachment is ideal). If you lose it, revoke the key and create a new one.

7 Note the three identifiers you now need:

Identifier	Where to find it	Looks like
Key ID	On the key's page under Keys, and in the filename.	7K3M9PQ2XB (10 chars)
Team ID	Top-right of the developer portal, under your name; also under Membership details.	A1B2C3D4E5 (10 chars)
Bundle ID	Xcode → target → General → Bundle Identifier; or Identifiers in the portal.	com.acme.shop

Part B — Enable push in the app

8 Make sure the App ID has the Push Notifications capability: Certificates, Identifiers & Profiles → Identifiers → your app → tick Push Notifications → Save. (Xcode does this for you when you add the capability with automatic signing.)

9 In Xcode select the app target → Signing & Capabilities → + Capability and add:

• Push Notifications
• Background Modes → tick Remote notifications

10 Add a Notification Service Extension target (File → New → Target… → Notification Service Extension). Without it there is no delivered event, no image and no action buttons on iOS. The SDK ships a drop-in NotificationService.swift; wiring is in the iOS SDK page.

Part C — Upload the key to Open Notification

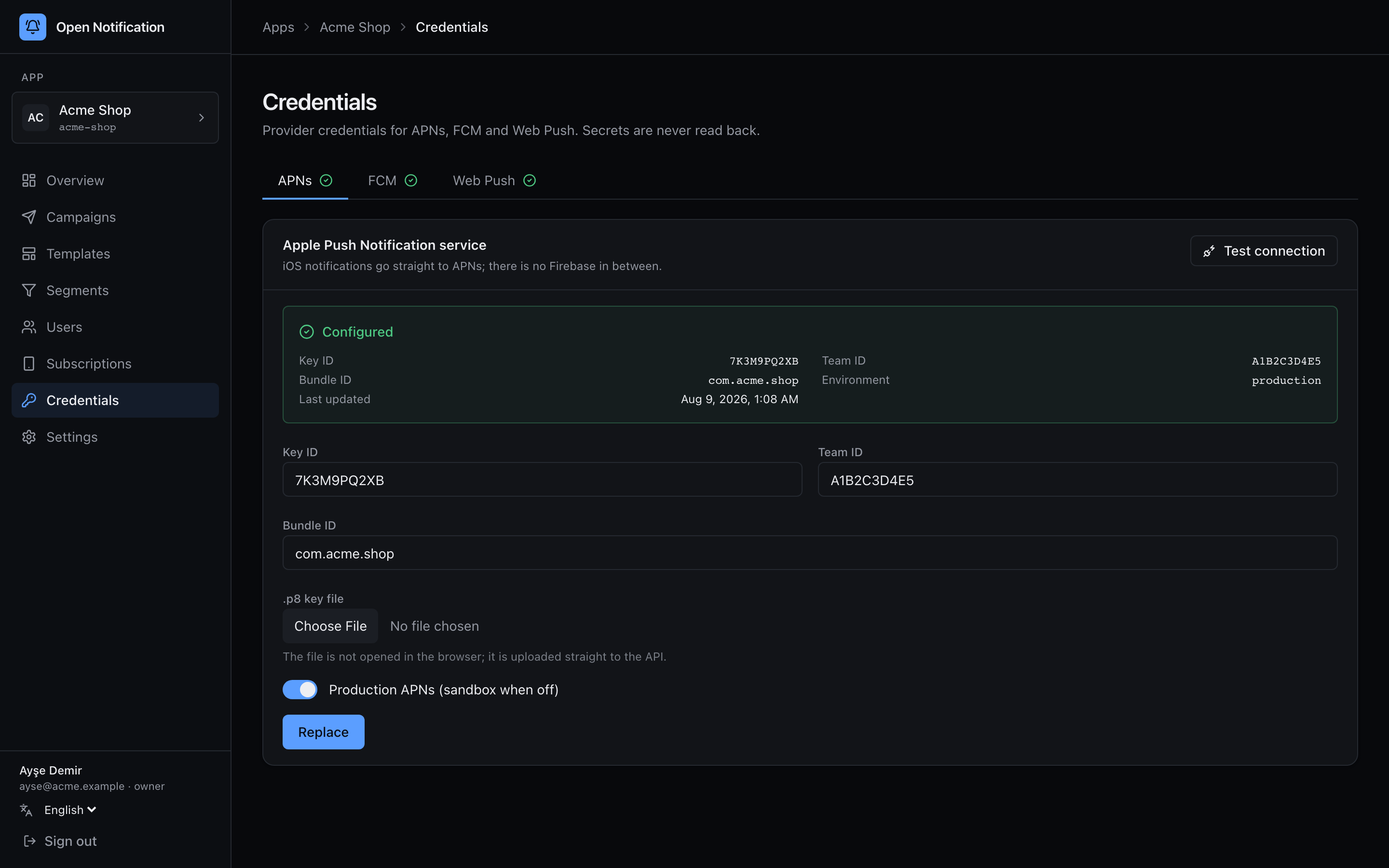

Either in the dashboard — Credentials › APNs:

…or from the command line:

bun run app:create -- --name "Acme" --slug acme \
  --apns-p8 ./AuthKey_7K3M9PQ2XB.p8 \
  --apns-key-id 7K3M9PQ2XB \
  --apns-team-id A1B2C3D4E5 \
  --apns-bundle-id com.acme.shop \
  --apns-production

The .p8 is sealed with ENCRYPTION_KEY on arrival and never returned by any API.

Sandbox vs. production

Build	Host	Setting
Xcode debug build, TestFlight internal builds signed with a development profile	api.sandbox.push.apple.com	Production APNs off
App Store, TestFlight (App Store distribution), Ad Hoc	api.push.apple.com	Production APNs on

A token from one environment is rejected by the other with BadDeviceToken. If you need both at once, create two apps in Open Notification (acme and acme-dev) with the same .p8 and different settings.

Part D — Verify

11 Press Test connection on the credentials page. The API signs a JWT with your key and sends to a deliberately invalid token:

Result	Meaning
✅ BadDeviceToken	Apple authenticated you and rejected the fake token. Your key, Key ID, Team ID and Bundle ID are all right.
❌ InvalidProviderToken	Key ID / Team ID / .p8 do not match each other.
❌ TopicDisallowed / 403	The key is valid but may not send to this Bundle ID — check the App ID's push capability, or the key was created without APNs.
❌ MissingProviderToken	The .p8 file is empty or not PEM.

What the server sends

For reference, the payload a device receives:

{
  "aps": {
    "alert": { "title": "New match", "body": "3 people liked you" },
    "sound": "default",
    "badge": 1,
    "mutable-content": 1,
    "thread-id": "matches",
    "interruption-level": "time-sensitive",
    "category": "on_66f1a…"
  },
  "on": {
    "m": "<signed msgId>",
    "c": "<campaignId>",
    "url": "acme://matches",
    "img": "https://cdn.example.com/x.jpg",
    "d": { "screen": "matches" },
    "a": [{ "id": "view", "title": "View" }]
  }
}

mutable-content: 1 is always set — it is what wakes the extension. interruption-level is time-sensitive for priority: "high" and active otherwise, matching apns-priority 10 / 5. A silent notification has no sound key (that is what presentation.sound = "none" produces). apns-collapse-id and apns-expiration come from collapseId and ttl.

Error handling on the server

APNs reason	Worker action
BadDeviceToken, Unregistered, DeviceTokenNotForTopic	Subscription invalidated. Never retried.
ExpiredProviderToken	JWT refreshed, retried.
TooManyRequests, ServiceUnavailable	Retried with exponential backoff, up to 3 attempts.
TooManyProviderTokenUpdates	Would only happen if a JWT were refreshed more than every 20 minutes; the worker caches it per app.
